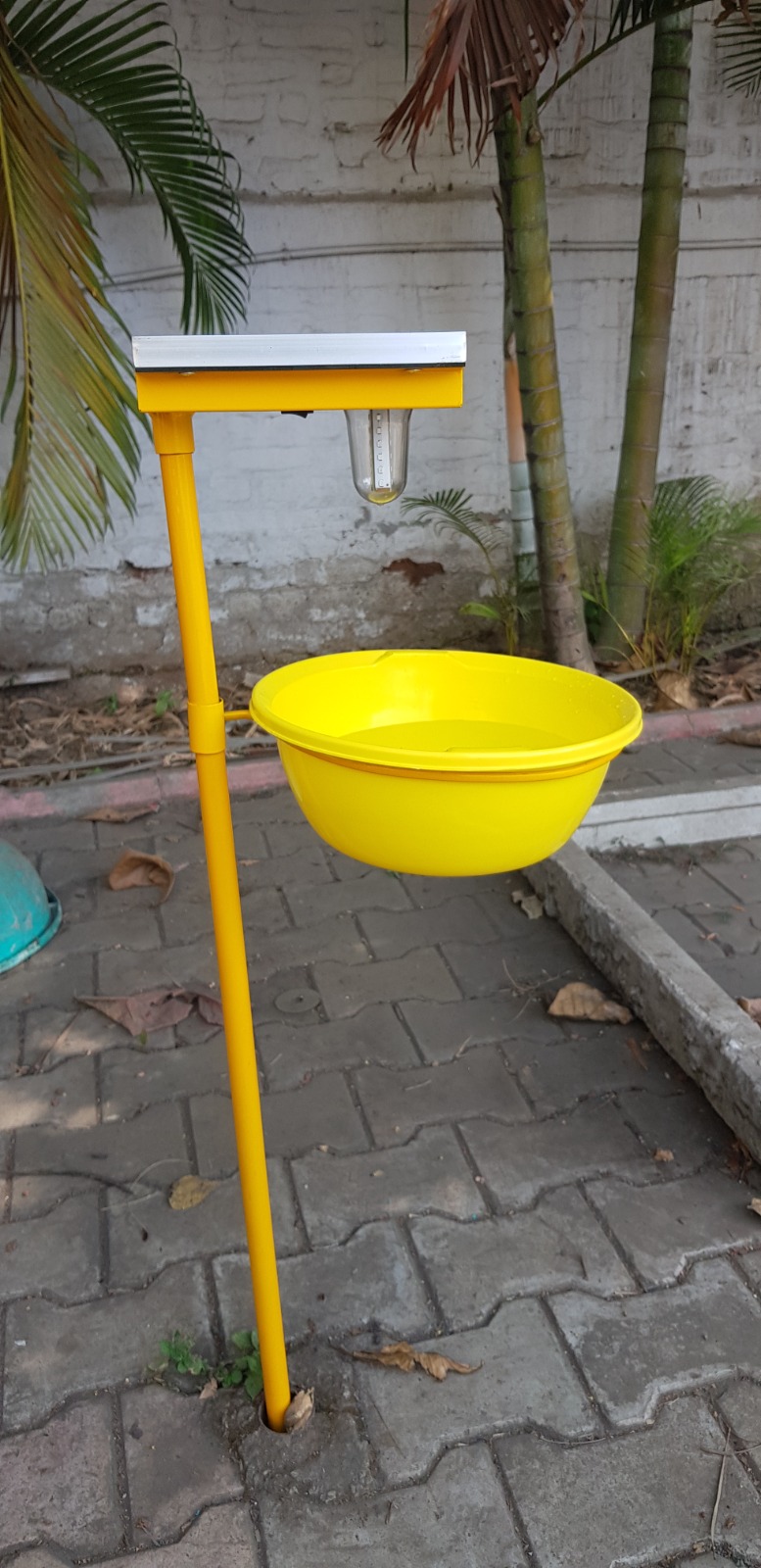

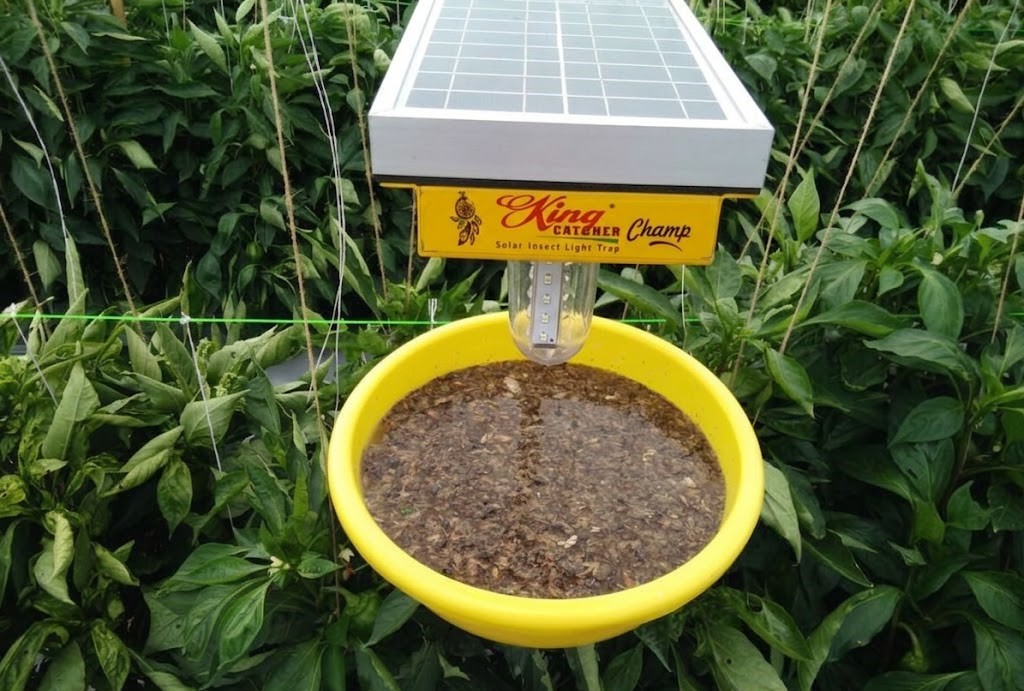

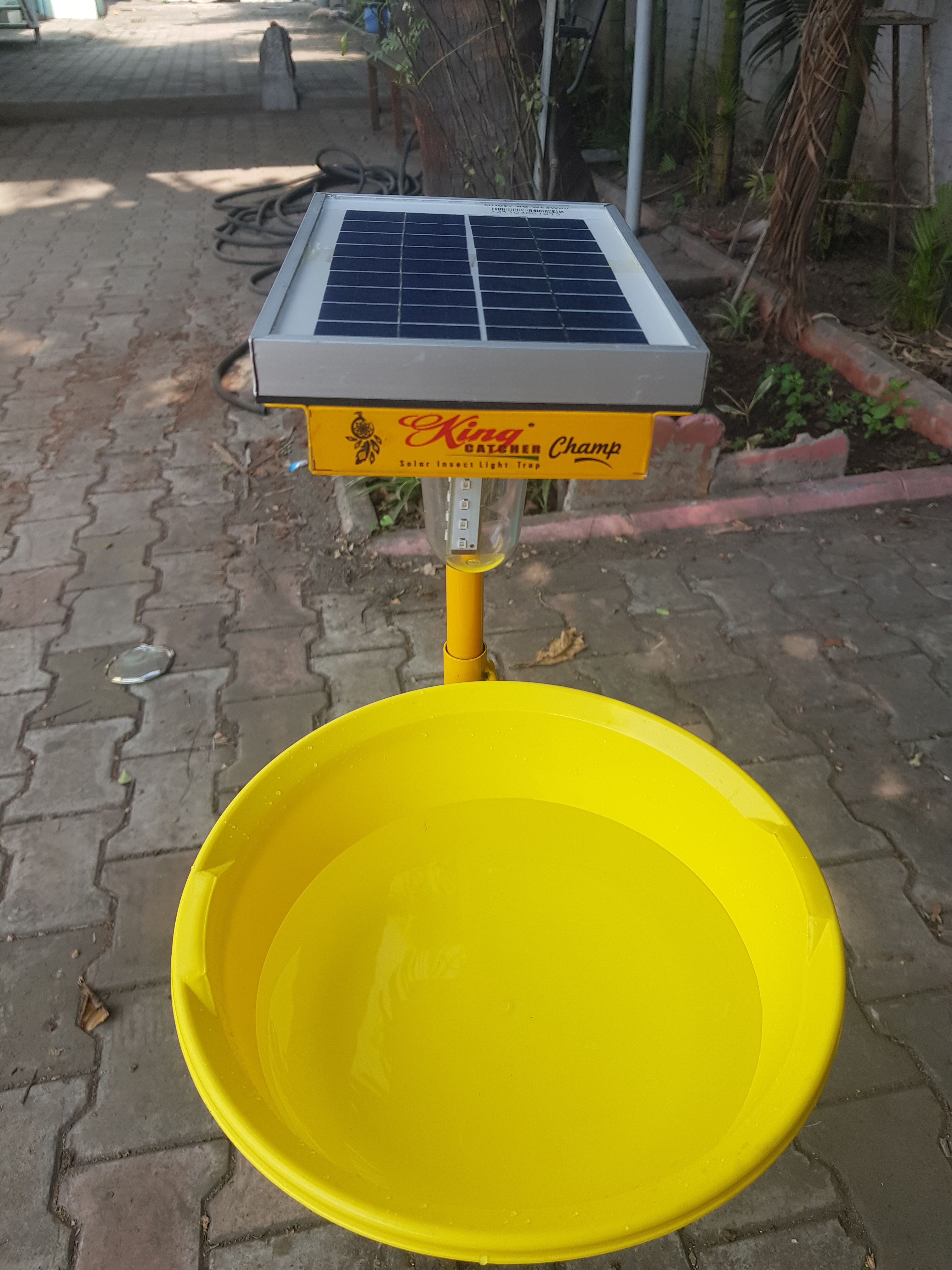

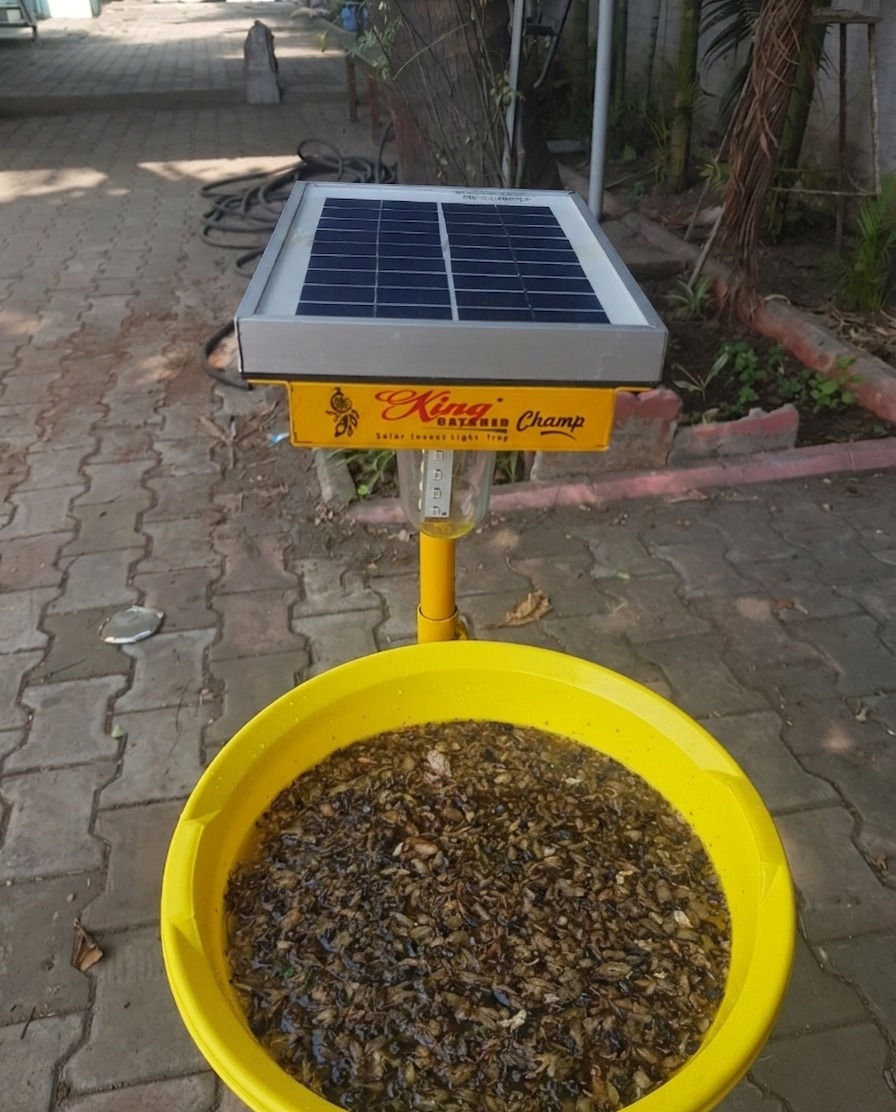

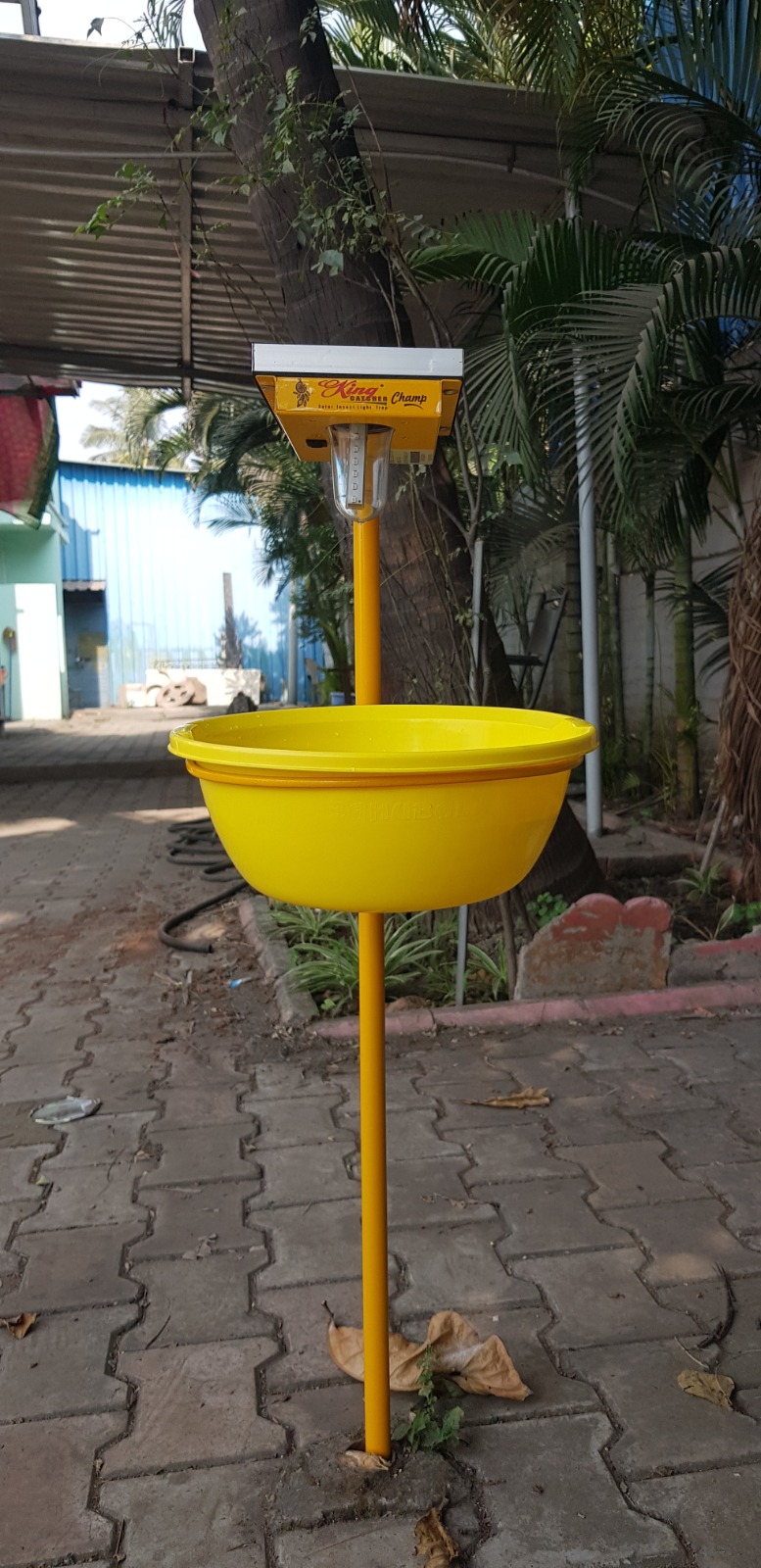

ECO SOLAR POWERED INSECT TRAP (KING CATCHER CHAMP)

• Solar insect killer Microcontroller based with Frequency UV LED 380nm
• LED watts 3Watts (24 LEDs)
• Solar panel 3Watts 9V or 3W 5Volts polycrystalline Aluminum shielded with tuff glass, Size (190X 120mm) may vary.
• Battery 7.4volts 2200M AH or 3.7V 4400mah Li Ion Battery with 12months warranty (System guarantee for 1 year).
• Operating Voltage: 6V DC Solar PV Cell: 3W 9V or 3W 5V.
• 4000 Square Meters Coverage open area (1acres).
• Eco-Friendly No pesticides.
• Traps 1500 kinds of pests.
• Agriculture Purpose.
• LED Attraction Ultraviolet light 380 to 390 nm.
• Microcontroller based frequency Light illumination.
• Start in evening 15 seconds delay after sunset and remain for 4.0 Hrs. Automatically turn on the light Evening, and turn off at Night ( Battery backup 2 Nights ).

Features and Benefits:-

Helps to catch all the Flying Nymphs and Adult insects like Leaf folder, Stem borer moths, Fruit borer moths, Hoppers, Fruit Weevil and Beetles etc., thereby reduce adult population and subsequent progenies in the fields. Helps to identify the Pest and Insects pattern to develop Pest Management and control plan. Helps distinguishing and controlling pest and insects damaging the crop and enabling pollination to improve the productivity. Produced output has less chemical impact which makes people healthy and protects eco System. Portable across the crop area without any changes. No Major mounting or installation efforts required and Easy to operate. Solar Chargeable and Automatic Timer Device Turn ON by sunset and Turn Off after 4 hours Continuous operation.
No Electricity and Manpower required to operate the device Economical and helps reduction of chemical pest Management cost. Eco-friendly Pest and Insects Control device.

Tested by:-

1) DR. BALASAHEB SAWANT KONKAN KRISHI VIDYAPEETH, DAPOLI (M.S) & VASANTDADA SUGAR INSTITUTE - [VSI], PUNE.
2) KRISHI VIGYAN KENDRA, Tal.-Hatkanangale, Dist- Kolhapur.
3) ICAR-BIRDS Krishi Vigyan Kendra, BIRDS Campus, Tukkanatti.
4) NRCP National Research Centre on Pomegranate Sholapur.
5) TEST REORT ICAR - KVK- TUKANNATI
6) TEST REPORT ICAR – LUCKNOW
7) TEST REPORT ICAR- KVK- KANCHANPUR
8) TEST REPOST ICAR- KVK- TALSANDE
